High definition Disposable Cup Making Machine - HCM100 super tall cup forming machine – HQ

Specification of Machine

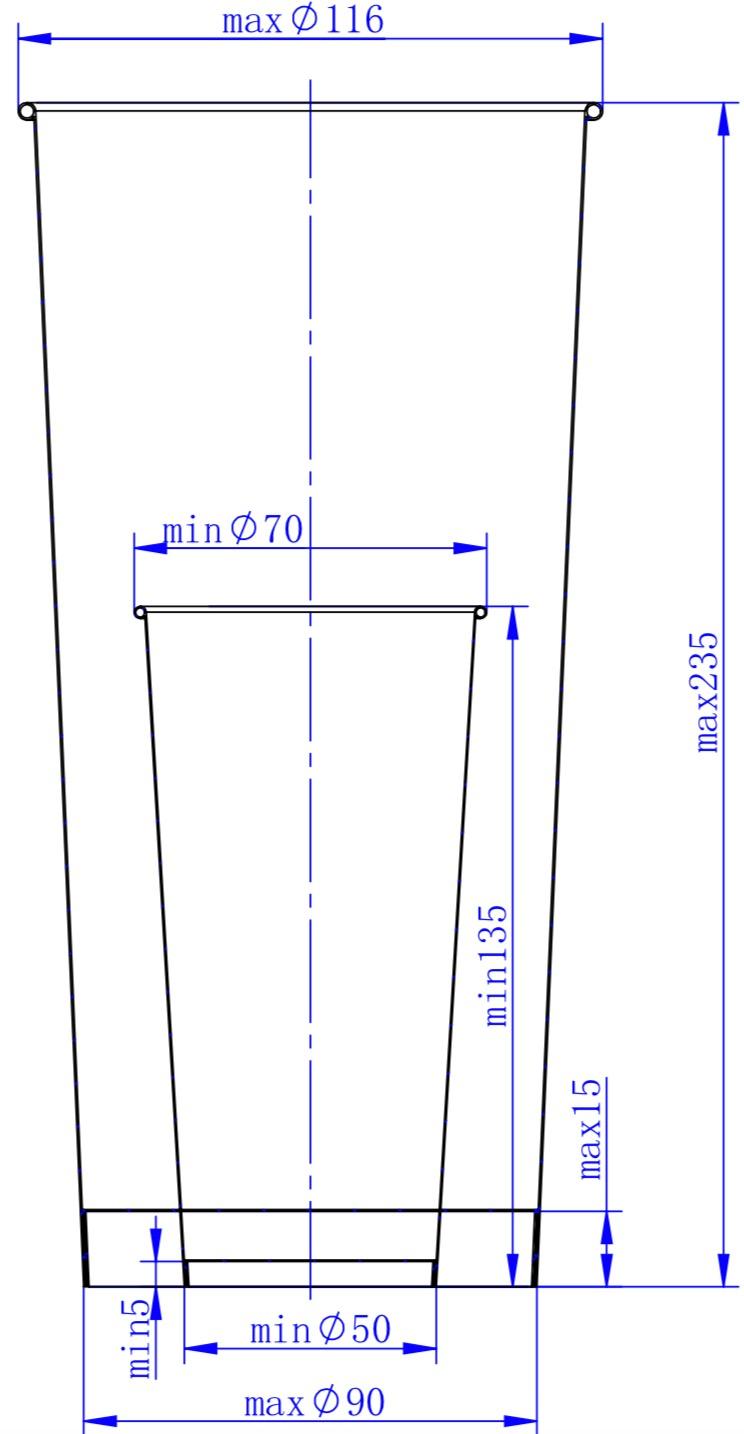

Finished Product Range

★ Top Diameter: 70 - 116mm
★ Bottom Diameter: 50 - 90mm
★ Total Height: 135 - 235mm
★ Other sizes upon request

Available paper

Single PE / PLA, Double PE / PLA, PE / Aluminum or water based biodegradable materials coated paper board

Competitive Advantage

❋ The feed table is a double deck design to prevent paper dust go into the main frame.
❋ The feed table is a double deck design to prevent paper dust go into the main frame. Table is designed with reasonable width, which is more convenient for maintenance.
❋ The mechanical transmission is mainly by gears to two longitudinal shafts. The main motor’s output is from both sides of motor shaft, therefore the force transmission is balance.
❋ Transmission structure is simple and effective, leaves enough room for repair and maintenance.
❋ The open type indexing gear (turret 10 : turret 8 arrangement to make all function more reasonable). We choose IKO (CF20) heavy load pin roller bearing for indexing gear cam follower, oil and air pressure gauges, digital transmitters are use (Japan Panasonic).
❋ The second turret equipped with 8 working stations. So additional functions such as third rim rolling station (for better rim rolling, specially for thick paper) or grooving station can be realized.
❋ Folding wings、knurling wheel and brim rolling stations are adjustable above main table, no adjustment needed inside the main frame so that the work is much easier and time saving.
❋ Electric control cabinet: The whole machine is controlled by PLC, we choose Japan Mitsubishi high-end product. All motors are independent controlled by frequency invertors, these can adapt wider range of paper character.
❋ Heaters are using Leister, a well-known brand made in Swiss, ultrasonic for side seam supplemental.
❋ Paper low level or paper missing and paper-jam etc., all these faults will display precisely in touch panel alarm window.

Huan Qiang team has been engaged in quality round and non-round paper cup machinery manufacturing in China for decades. Our accumulated technologies and experience guarantee the stability and efficiency of machines at a very competitive prices.

Our Service

Huan Qiang philosophy is that After-sale Service is part of the complete package that we offer, and should be part of the on-going relationship after purchase. The after-sale services is provided by a skilled team of employees.

★ Perform on-site (at customer’s facilities) installation and commissioning services for a selection of machines;
★ Offer breakdown maintenance support;
★ Complete part-identification/part purchase.
★ Optimizing productivity and production quality consultation
Get in touch today and discover how your company can benefit from HQ services.
