Rapid Delivery for Edible Cups Manufacturing Machine - SM100 ripple double wall cup forming machine – HQ

description

SM100 is designed to produce ripple wall cups with stable production speed 120-150pcs/min. It’s working from paper blank pile, with ultrasonic system or hot melt gluing for side sealing.

Ripple wall cup gets more and more popular because its unique hold feeling, anti-skid heat-resistance feature and comparing to normal hollow type double wall cup, which occupy more space during storage and transportation because of stacking height, ripple cup could be a good option.

Specification of Machine

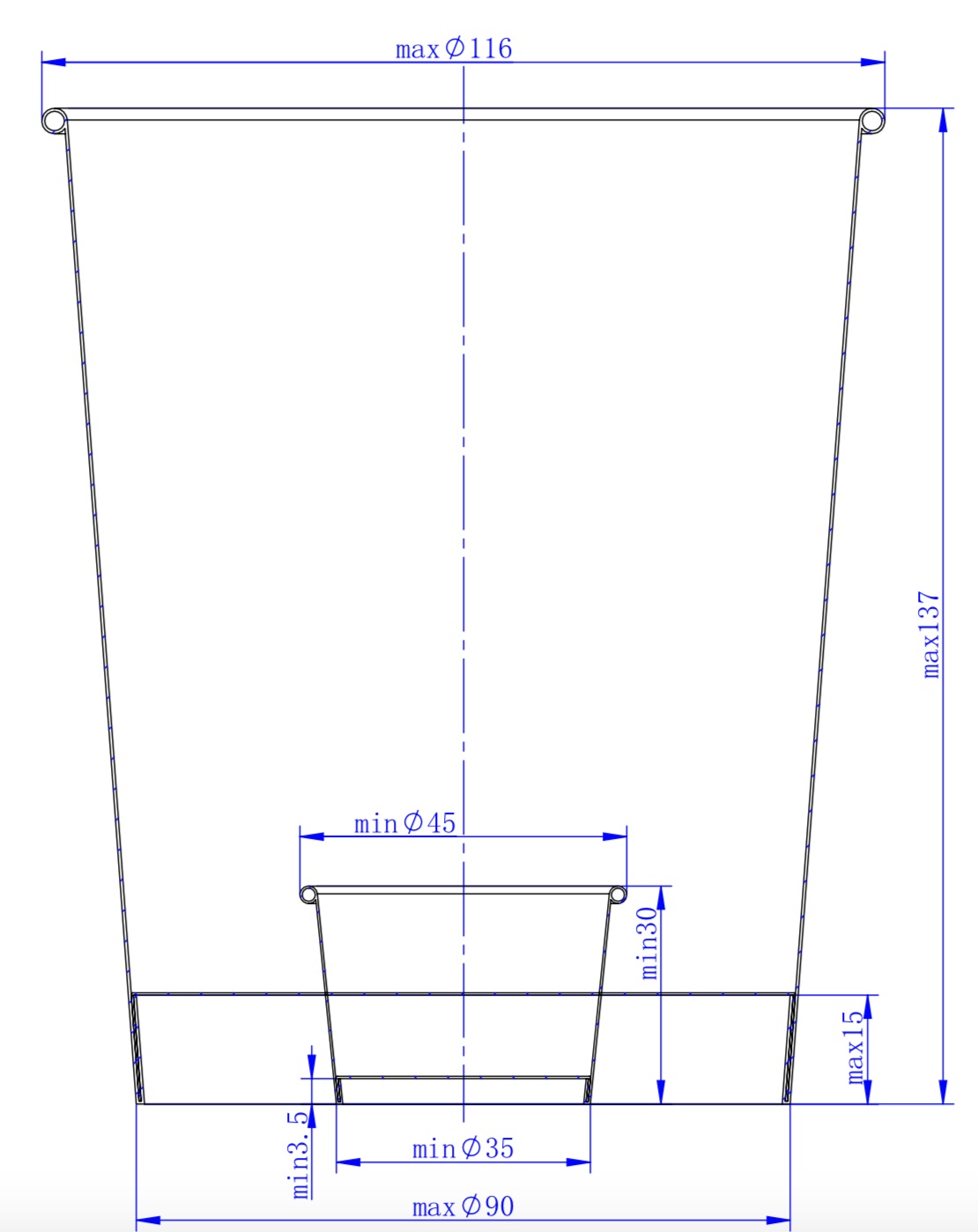

Finished Product Range

★ Top Diameter: 45 - 105mm
★ Bottom Diameter: 35 - 78mm
★ Total Height: maximum 137mm
★ Other sizes upon request

Available paper

Coated or un-coated paper board

Competitive Advantage

❋ The feed table is a double deck design to prevent paper dust go into the main frame.
❋ The mechanical transmission is mainly by gears to two longitudinal shafts. The main motor’s output is from both sides of motor shaft, therefore the force transmission is balance.
❋ The open type indexing gear (turret 10 : turret 8 arrangement to make all function more reasonable). We choose IKO (CF20) heavy load pin roller bearing for indexing gear cam follower, oil and air pressure gauges, digital transmitters are use (Japan Panasonic).
❋ Electric control cabinet: The whole machine is controlled by PLC, we choose Japan Mitsubishi high-end product. All motors are independent controlled by frequency invertors, these can adapt wide range of paper character.
❋ Paper low level or paper missing and paper-jam etc., all these faults will display precisely in touch panel alarm window

One unique feature of HQ SM100 sleeve machine is that it is designed to produce ripple cup, normal type of double wall cup, hybrid cup with inner plastic cup and out-layer paper sleeve wrapped. Besides that, SM100 machine can be converted to a 2-32oz paper cup forming machine, which is more flexible for production range and easier to shift to paper cup production when needed.
