CM100 desto cup forming machine

Short Description:

CM100 Desto cup forming machine is designed to produce Desto cups with stable production speed 120-150pcs/min.

As a more environment-friendly alternative to plastic packaging, Desto cup solutions are proving to be a strong option. A Desto cup consists of a very thin plastic interior cup made of PS or PP, which is surrounded by a cardboard sleeve printed in top quality. By combining products with a second material, the plastic content can be reduced by up to 80%. The two materials can be easily separated after use and recycled separately.

This combination opens up a variety of possibilities:

• Barcode at the bottom

• Printing surface is also available on the cardboard’s inside

• With transparent plastic and die cut window

Product Detail

Product Tags

Specification of Machine

Specification CM100
Paper cup size of manufacture 2oz ~ 16oz
Production speed 120-150 pcs/min
Side sealing method Hot air heating & ultrasonic
Bottom sealing method Hot air heating
Rated power 21KW
Air consumption (at 6kg/cm2) 0.4 m³/min
Overall Dimension L2,820mm x W1,300mm x H1,850mm
Machine net weight 4,200 kg

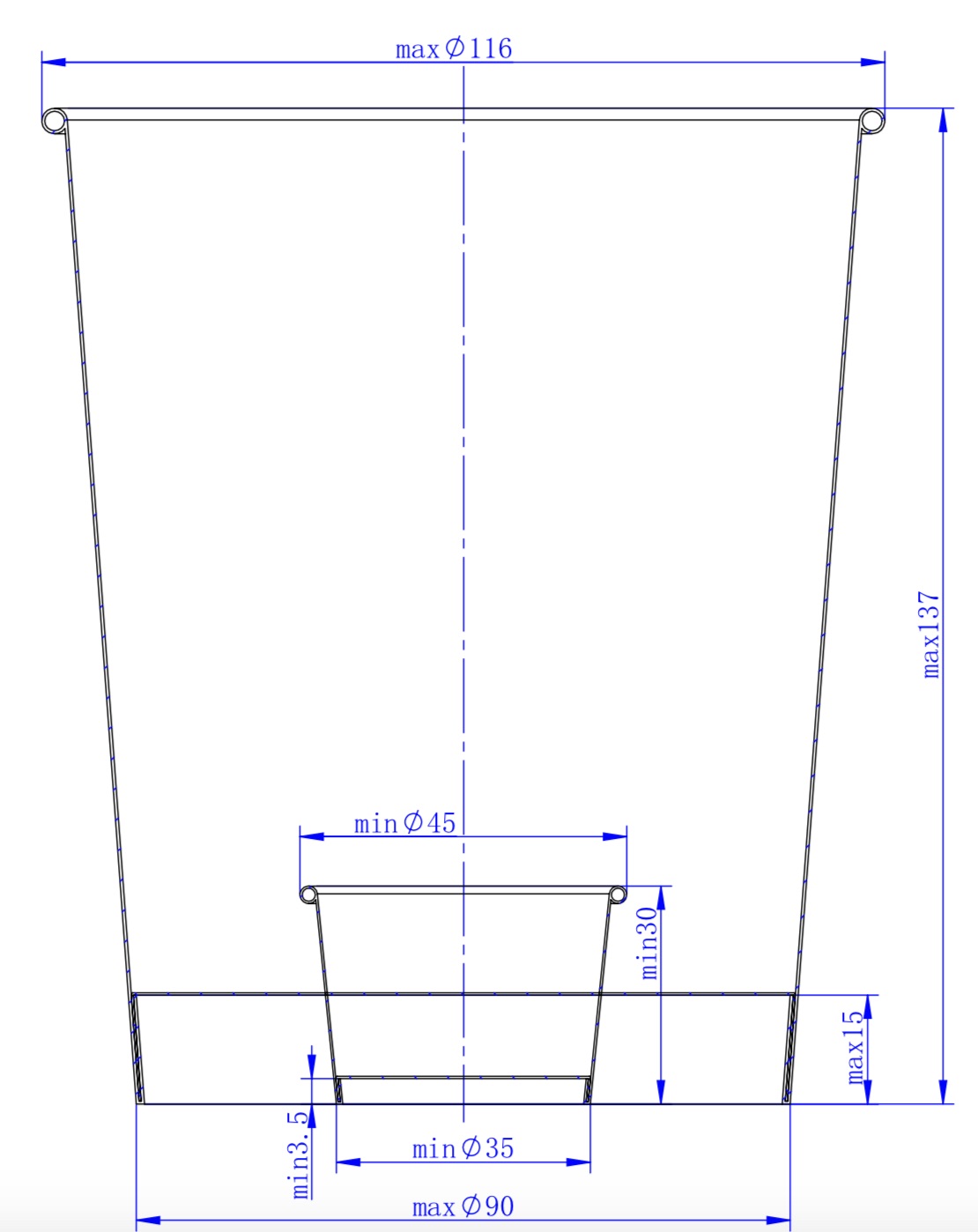

Finished Product Range

★ Top Diameter: 45 - 105mm
★ Bottom Diameter: 35 - 78mm
★ Total Height: maximum 137mm
★ Other sizes upon request


Available paper

Single PE / PLA, Double PE / PLA, PE / Aluminum or water based biodegradable materials coated paper board

Competitive Advantage

❋ The feed table is a double deck design to prevent paper dust go into the main frame.
❋ The mechanical transmission is mainly by gears to two longitudinal shafts. The main motor’s output is from both sides of motor shaft, therefore the force transmission is balance.
❋ The open type indexing gear (turret 10 : turret 8 arrangement to make all function more reasonable). We choose IKO (CF20) heavy load pin roller bearing for indexing gear cam follower, oil and air pressure gauges, digital transmitters are use (Japan Panasonic).
❋ Folding wings、knurling wheel and brim rolling stations are adjustable above main table, no adjustment needed inside the main frame so that the work is much easier and time saving.
❋ Electric control cabinet: The whole machine is controlled by PLC, we choose Japan Mitsubishi high-end product. All motors are independent controlled by frequency invertors, these can adapt wide range of paper character.
❋ Heaters is using Leister, which is well-known brand made in Swiss, ultrasonic for side seam supplemental.
❋ Paper low level or paper missing and paper-jam etc., all these faults will display precisely in touch panel alarm window

We also offer you the possibility to work together with us on the development of new products; from brainstorming to drawings and from sample production through to realization. Contact us!
