HCM100 take away container forming machine

Short Description:

HCM100 is designed to produce single PE / PLA, double PE / PLA or other biodegradable materials coated take away containers cups with stable production speed 90-120pcs/min. Take away containers can be used for food package like noodles, spaghetti, chicken wings, kebab…etc. It’s working from paper blank pile, bottom punching work from the paper roll, with both hot air heater and ultrasonic system for side sealing.

Product Detail

Product Tags

Specification of Machine

Specification HCM100
Paper cup size of manufacture 5oz ~ 44oz
Production speed 90-120 pcs/min
Side sealing method Hot air heating & ultrasonic
Bottom sealing method Hot air heating
Rated power 21KW
Air consumption (at 6kg/cm2) 0.4 m³/min
Overall Dimension L3,020mm x W1,300mm x H1,850mm
Machine net weight 4,500 kg

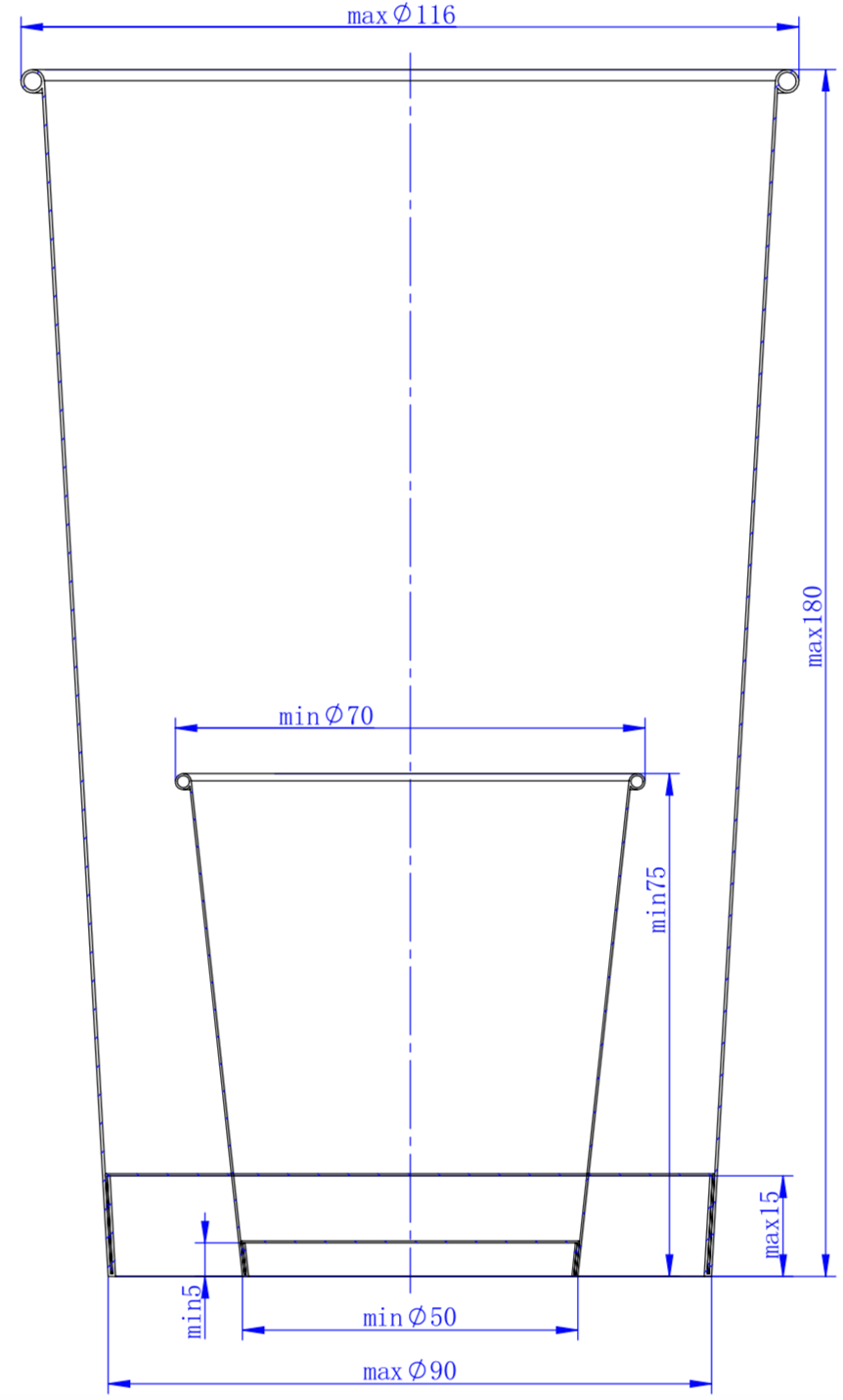

Finished Product Range

★ Top Diameter: 70 - 115mm
★ Bottom Diameter: 50 - 75mm
★ Total Height: 75-180mm
★ Other sizes upon request


Available paper

Single PE / PLA, Double PE / PLA, PE / Aluminum or water based biodegradable materials coated paper board

Competitive Advantage

❋ The feed table is a double deck design to prevent paper dust go into the main frame. Table is designed with reasonable width, which is more convenient for maintenance.
❋ The mechanical transmission is mainly by gears to two longitudinal shafts. The main motor’s output is from both sides of motor shaft, therefore the force transmission is balance.
❋ Transmission structure is simple and effective, leaves enough room for repair and maintenance.
❋ The open type indexing gear (turret 10 : turret 8 arrangement to make all function more reasonable). We choose IKO (CF20) heavy load pin roller bearing for indexing gear cam follower, oil and air pressure gauges, digital transmitters are use (Japan Panasonic).
❋ Folding wings、knurling wheel and brim rolling stations are adjustable above main table, no adjustment needed inside the main frame so that the work is much easier and time saving.
❋ Electric control cabinet: The whole machine is controlled by PLC, we choose Japan Mitsubishi high-end product. All motors are independent controlled by frequency invertors, these can adapt wider range of paper character.
❋ Heaters are using Leister, which is well-known brand made in Swiss, ultrasonic for side seam supplemental.
❋ Paper low level or paper missing and paper-jam etc., all these faults will display precisely in touch panel alarm window.
❋ Auto collection for finished take away containers

Huan Qiang team has been engaged in quality round and non-round paper cup machinery manufacturing in China for decades. Our accumulated technologies and experience guarantee the stability and efficiency of machines at a very competitive prices.

So far, our machines are widely used by customers worldwide to supply to brand names such as Starbucks, Quaker, Kraft, Mcdonlad's,  Indomie, KFC, Uni-president, Baskin Robbins and so on.
Get in touch today and discover how your company can benefit from HQ services.
